About this product
SPECIFICATIONS:
Call Features:
• Call out / Answer / Reject
• Mute / Unmute (microphone)
• Call Hold/ Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer(Attended/Unattended)
• Call Parking/ Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking
Generic:
• 2 SIP Lines
• POE Enabled
• Handset(HS) / Hands-free(HF) / Headset(HS) mode
• Desktop Stand
• Optional External Power Supply (X1SP Optional)
• Economical and Environmental friendly package
• Industrial Standard Certifications
Phone Features:
• Phonebook(500 entries)
• Remote Phonebook (XML/LDAP)
• Call log (100 entries, in/out/missed)
• Black/White List Call Filtering
• Voice Message Waiting lndication (VMWI)
• Programmable Soft keys
• Network Time Synchronization
• Action URL/ Active URI
Audio:
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Full-duplex Acoustic Echo Canceller (AEC) - Hands-free Mode
• 96ms tail-length
• Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)
• Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band - DTMF-Relay(RFC2833)/ SIP INFO
Deployment & Maintenance:
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP
• PNP/TR069

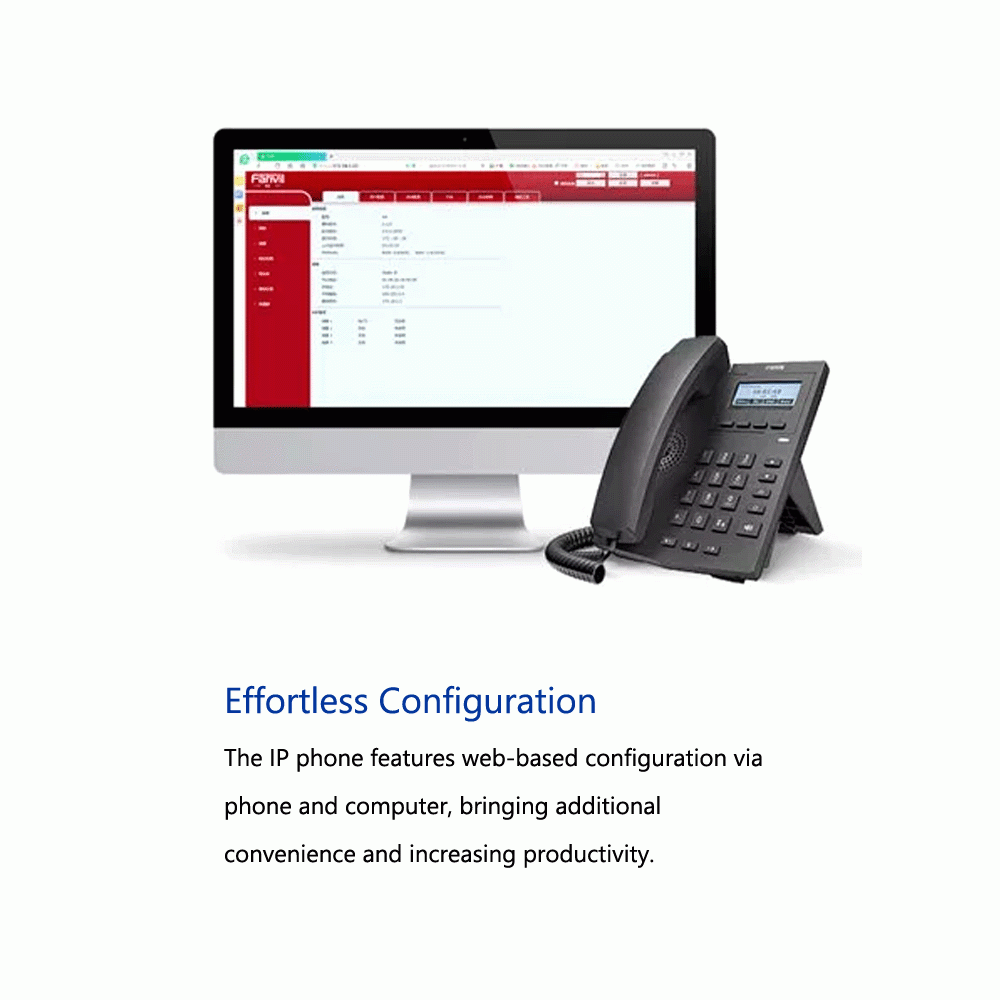

• Web Management Portal
• Web-based Packet-dump
• Configuration Export/Import
• Phone book Import/Export
• Firmware Upgrade
• Syslog
Networking:
• 10/100Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static/ DHCP/ PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS
Physical Specifications:

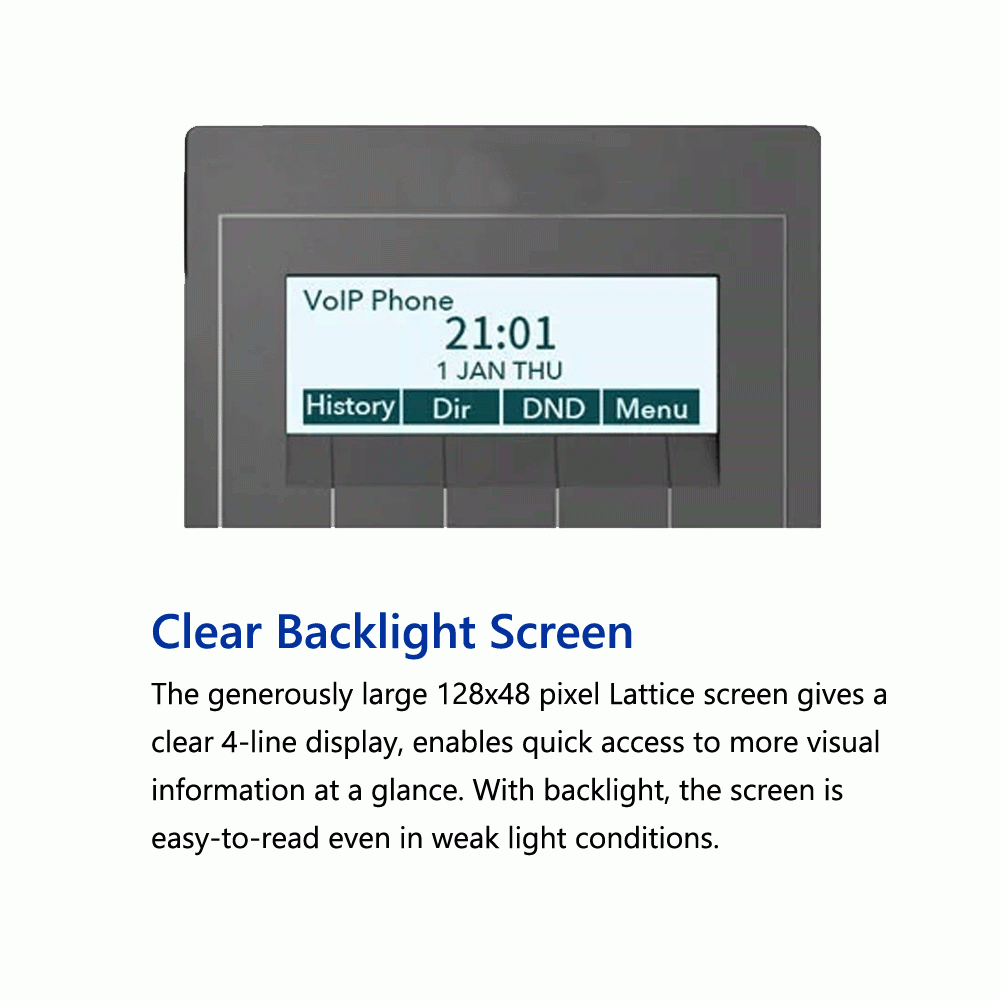

• LCD: 128x48 dot-matrix include backlight

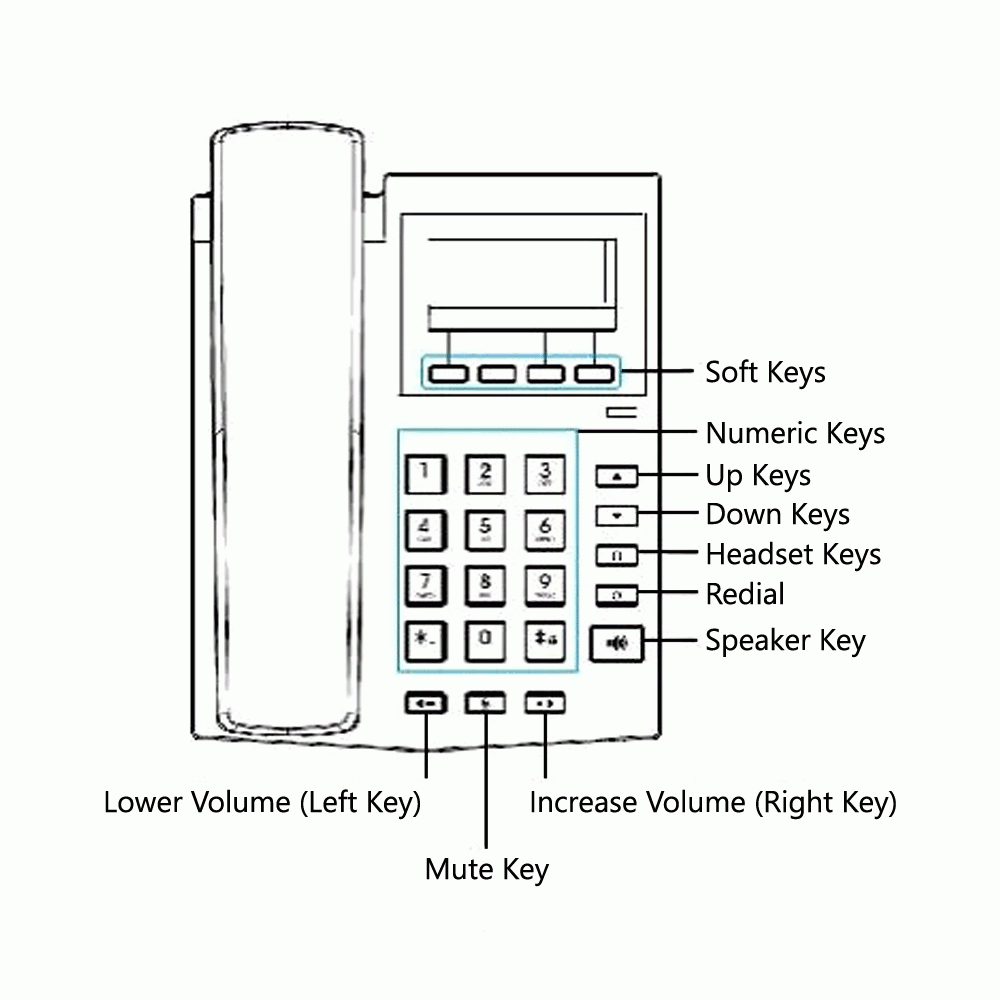

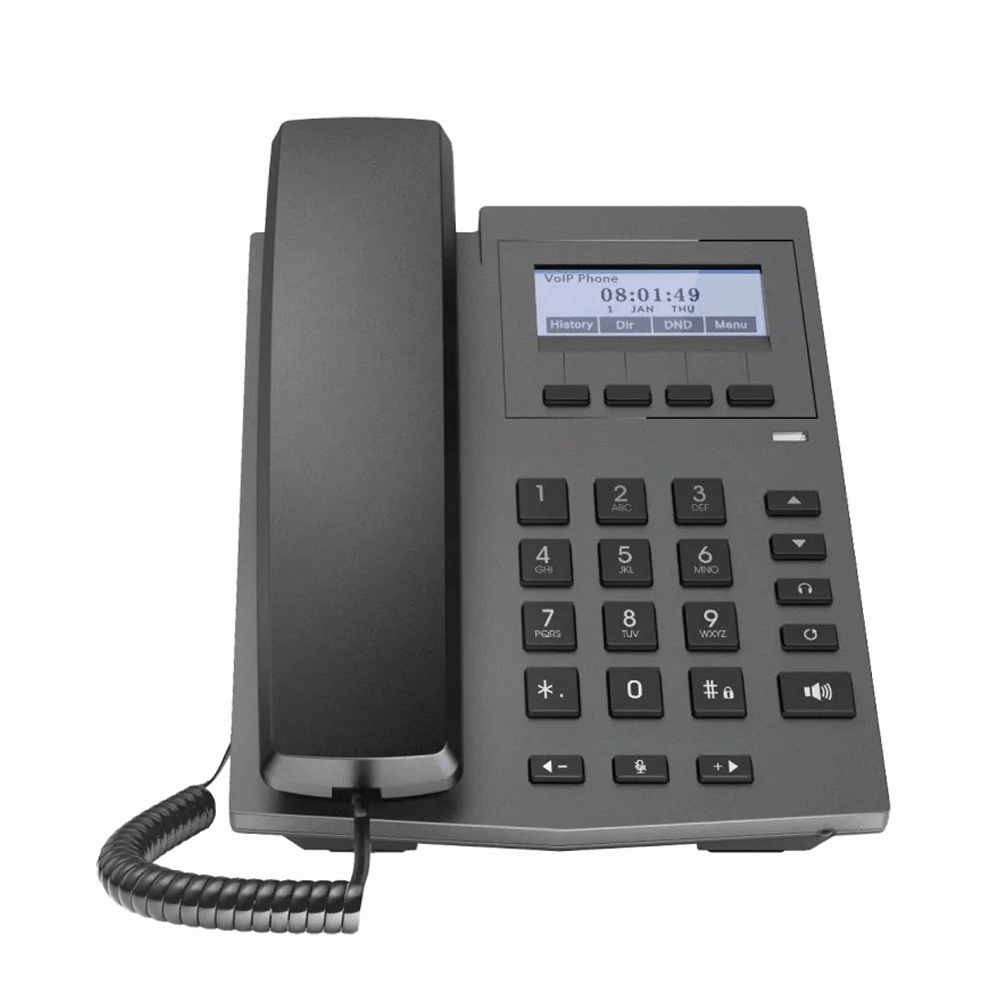

• Keypad: 24 keys, including
• 4 Soft-keys
• 4 Function keys (Up, Down, Headset, Redial)
• 12 Standard Phone Digits keys
• 2VolumeControl keys, lower/increase (Left/Right)
• 1 Mute key
• 1 Hands-free key

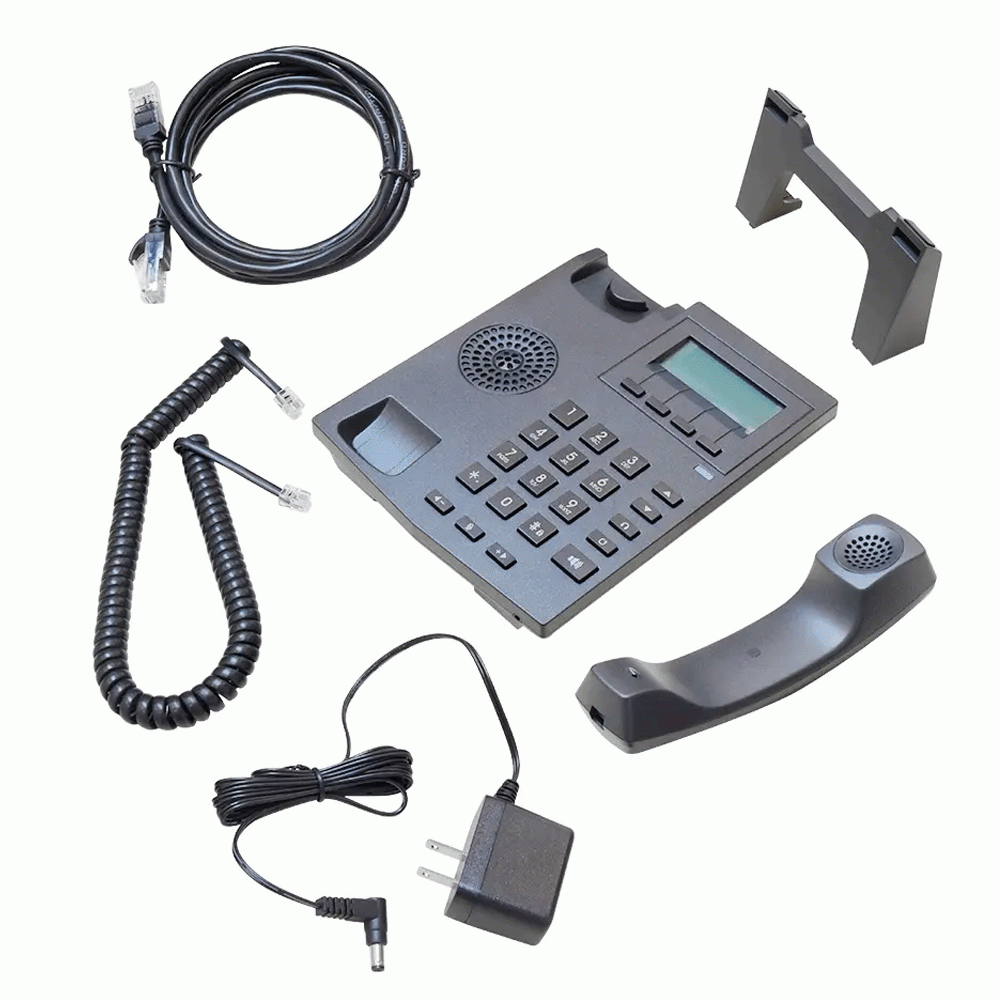

• Standard RJ9 Handset Wire x l
• 1.5M CATS Ethernet Cable x l

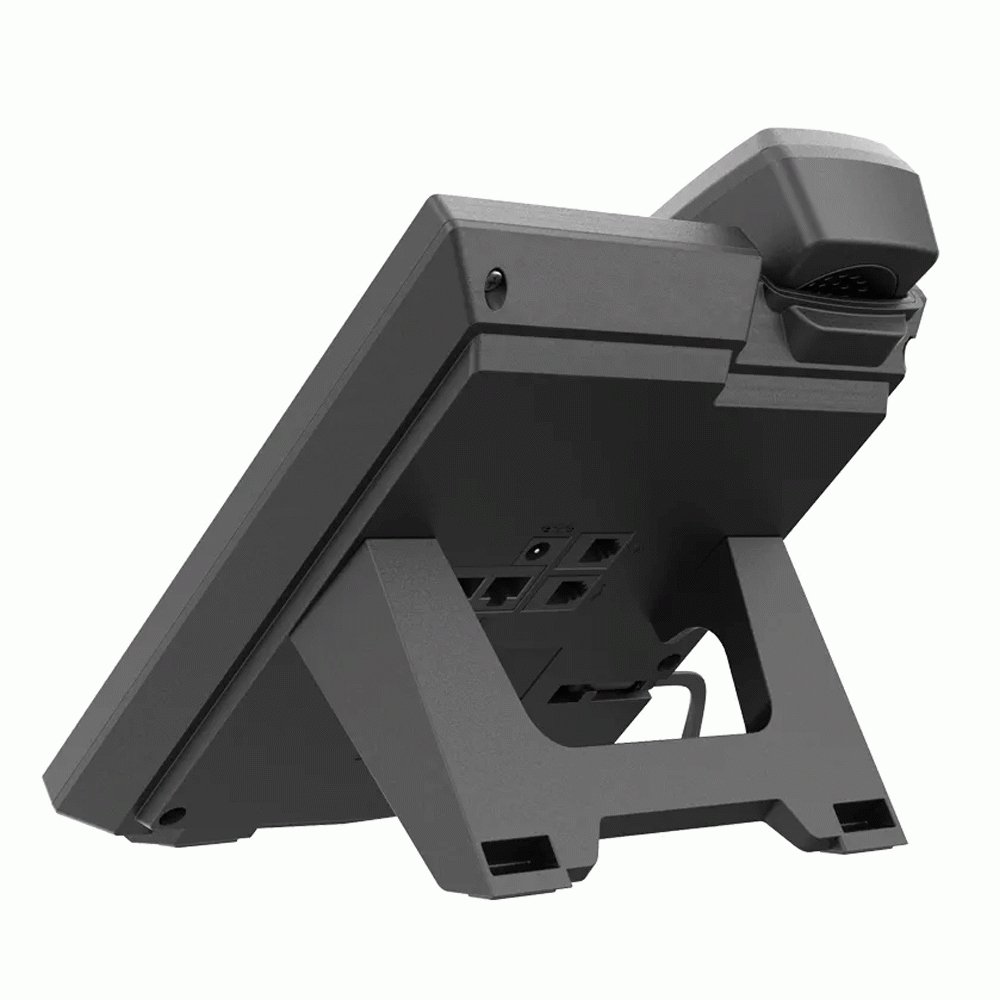

• RJ9 Phone port x2: Handset x l, Headphone x l
• RJ45 Ethernet Port x2: Network xl (802.3AF POE Class 1 for XlP, PC xl (Bridged to Network)
• Main Chipset: Broadcom
• DC Power input: 5V/0.6A
• Power Consumption: Idle-0.89W-1.2W Peak - 1.81W-2.5W
• WorkingTemperature:0~40°C
• Working Humidity: 10-65%
• Desktop Stand
• Color: Black
• Device Dimensions: 164x 154x 166mm (Desktop Stand)
• Gift Box Dimensions: 250x205 x66 mm (LxWxH)
• Outer CTN Dimensions:420x340x265mm (10 PCS)
